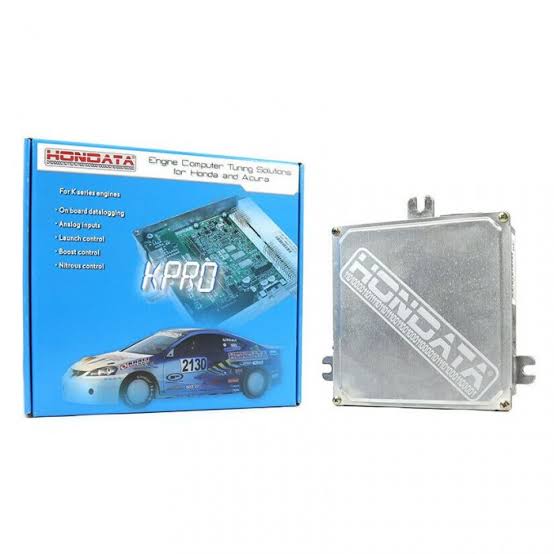

Hondata – K-Pro V4 with ECU

Hondata – K-Pro V4 with ECU

The most advanced K Series tuning option on the market.  Used by 1000's world wide . Only suitable for Type S DC5 and Type R DC5's, EP3's and K-Swap vehicles.

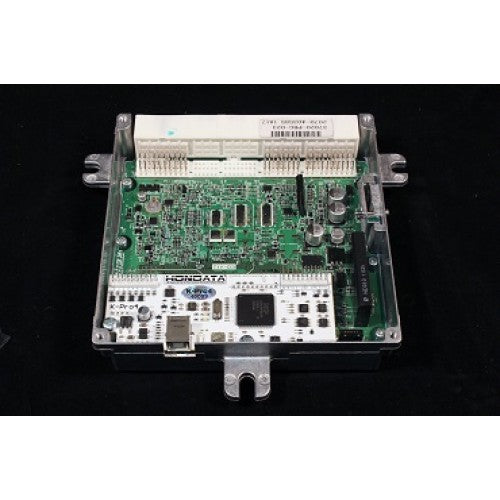

The K-Series Programmable ECU (K-Pro) consists of a hardware modification to any K-Series ECU, plus Windows software which allows you to re-program the ECU and datalog sensors.

Main features:

• Fits inside the ECU
• Designed and assembled in USA
• USB connection for speed and compatibility
• KManager Windows based software for parameter & table editing, calibration uploading, and datalogging.
• Many built in calibrations for common engine combinations
• Built in datalogging to a laptop
• On board datalogging memory (8 MB memory, 10-215 minutes datalogging)
• Adjustment for different sized injectors, with overall fuel trim.
• Configurable for any MAP sensor (to 5 Bar and above)
• TPS based table lookup for ITBs
• Engine protection from lean air fuel ratios, over boost and low oil/fuel pressure.
• Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)
• Launch control with anti-lag
• Three multi purpose outputs for nitrous control or similar.
• Supports lambda tracing from the stock wideband o2 or aftermarket wideband.
• PWM output for boost control
• Bluetooth support and Hondata Mobile app.
• Ethanol sensor input for flex-fuel capability.
• Alternate speed sensor input.
• Dash output serial & CAN streams.
• Live tuning and autotune.

NOTE: This is for a complete ecu with a KPro V4 Unit installed in a PND,PPA or PNF ECU
