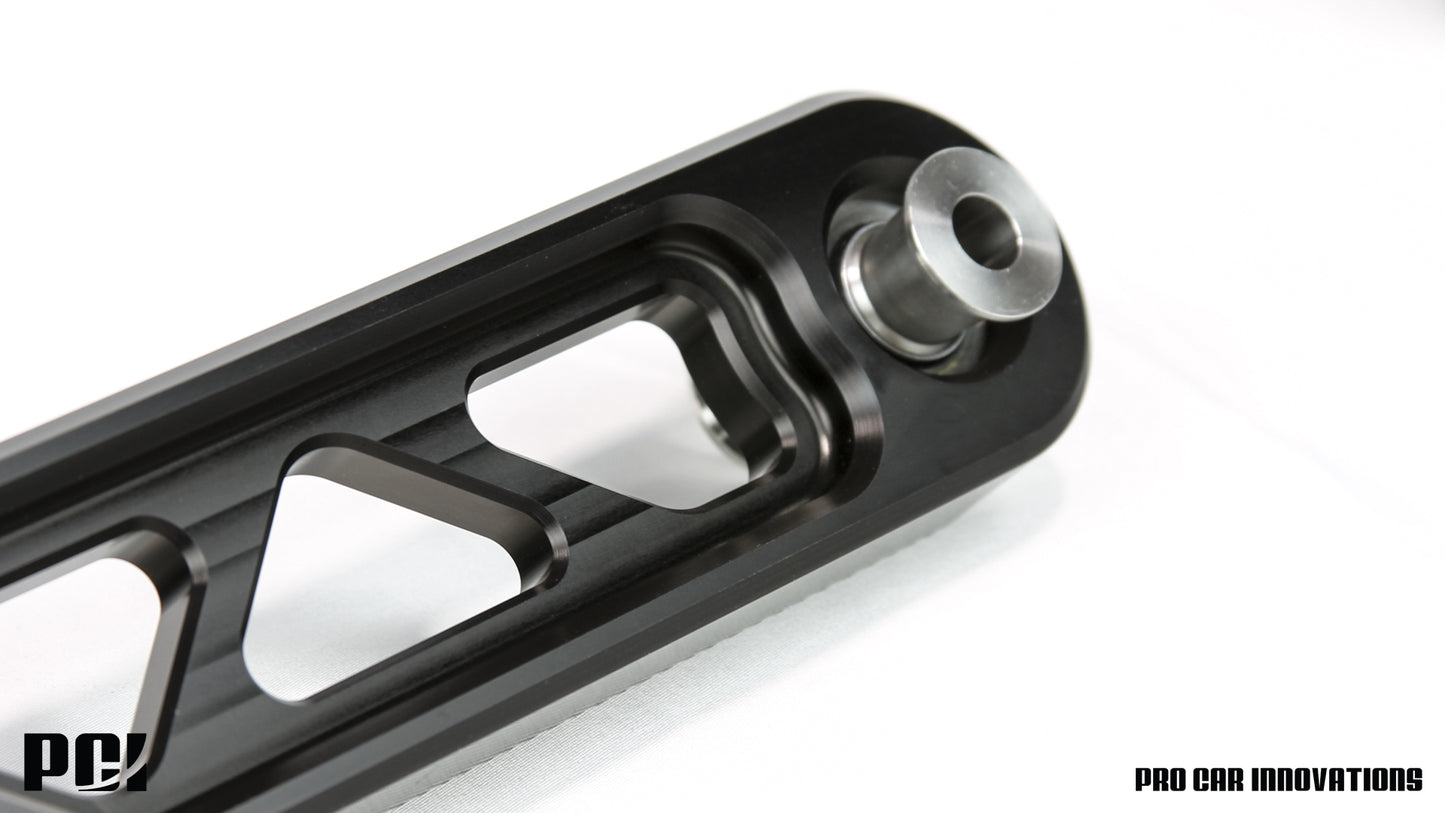

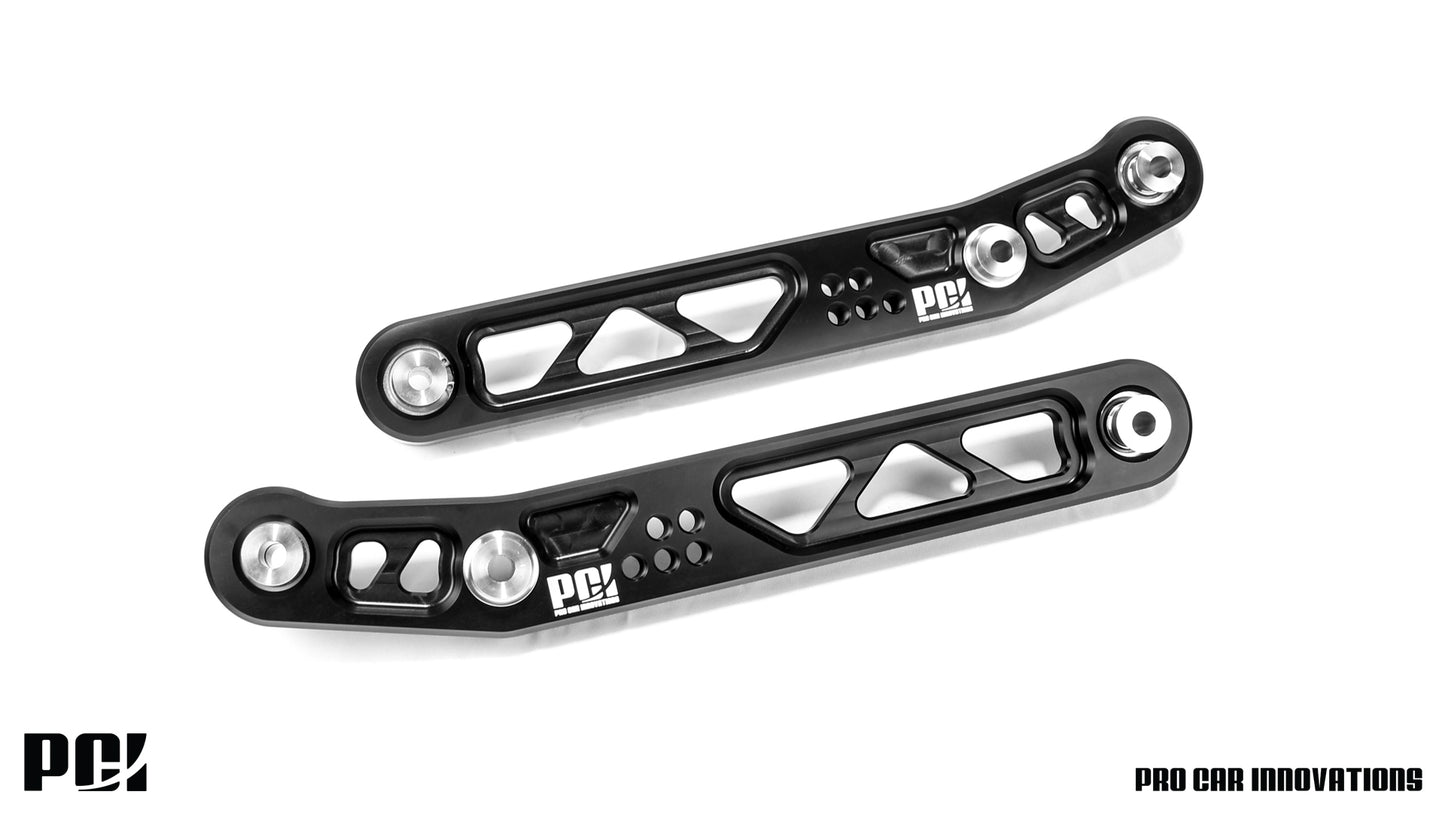

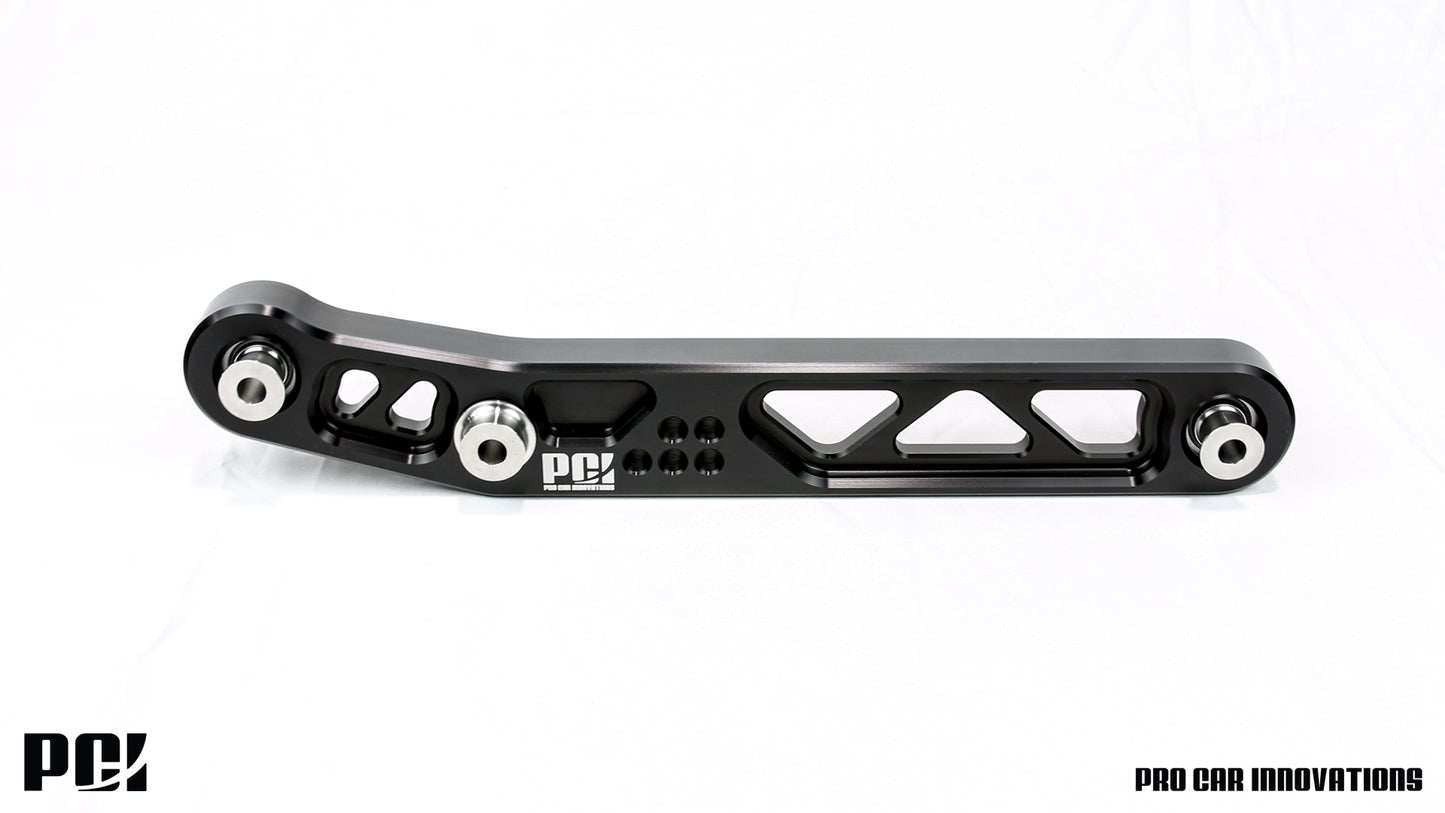

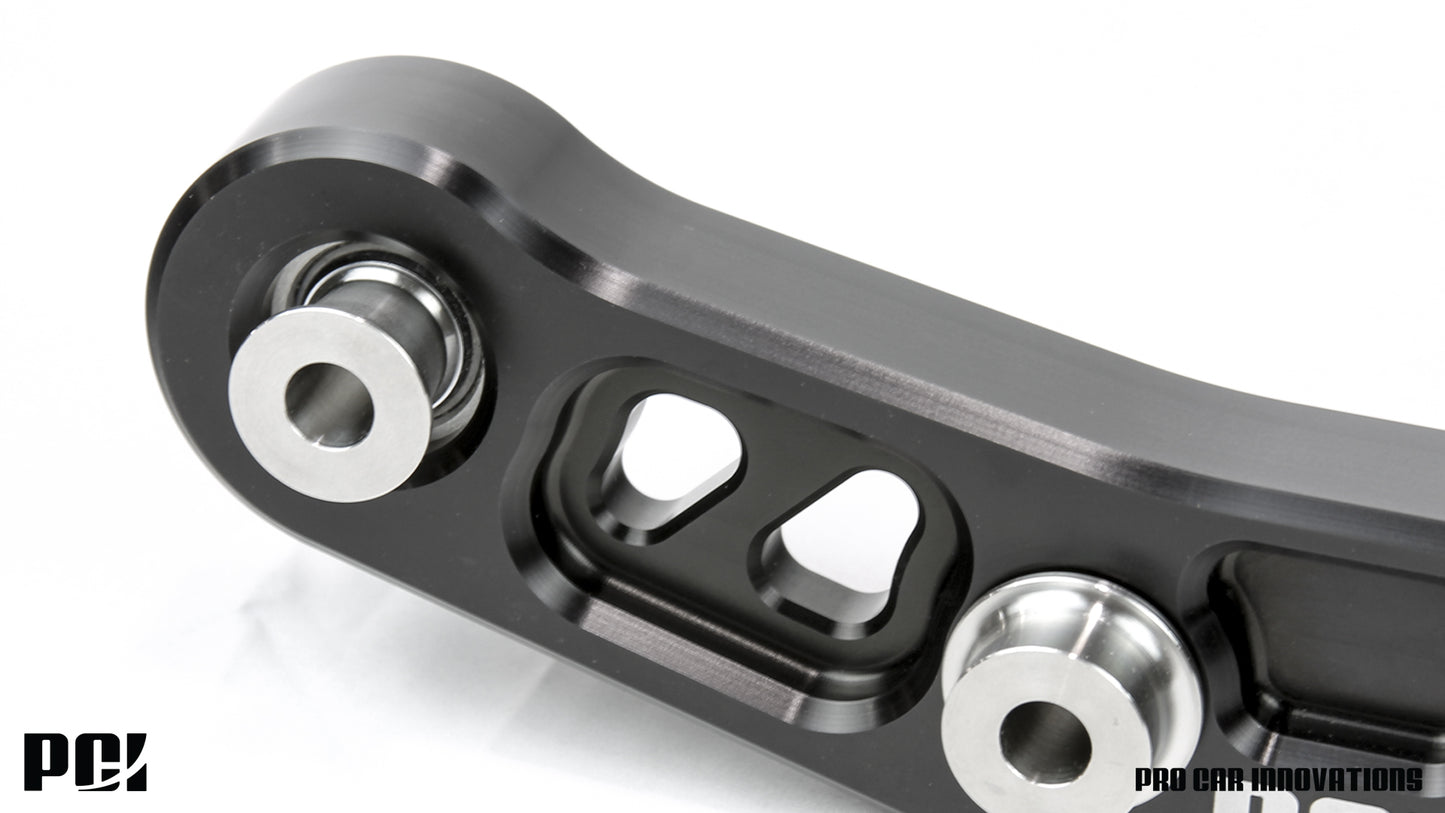

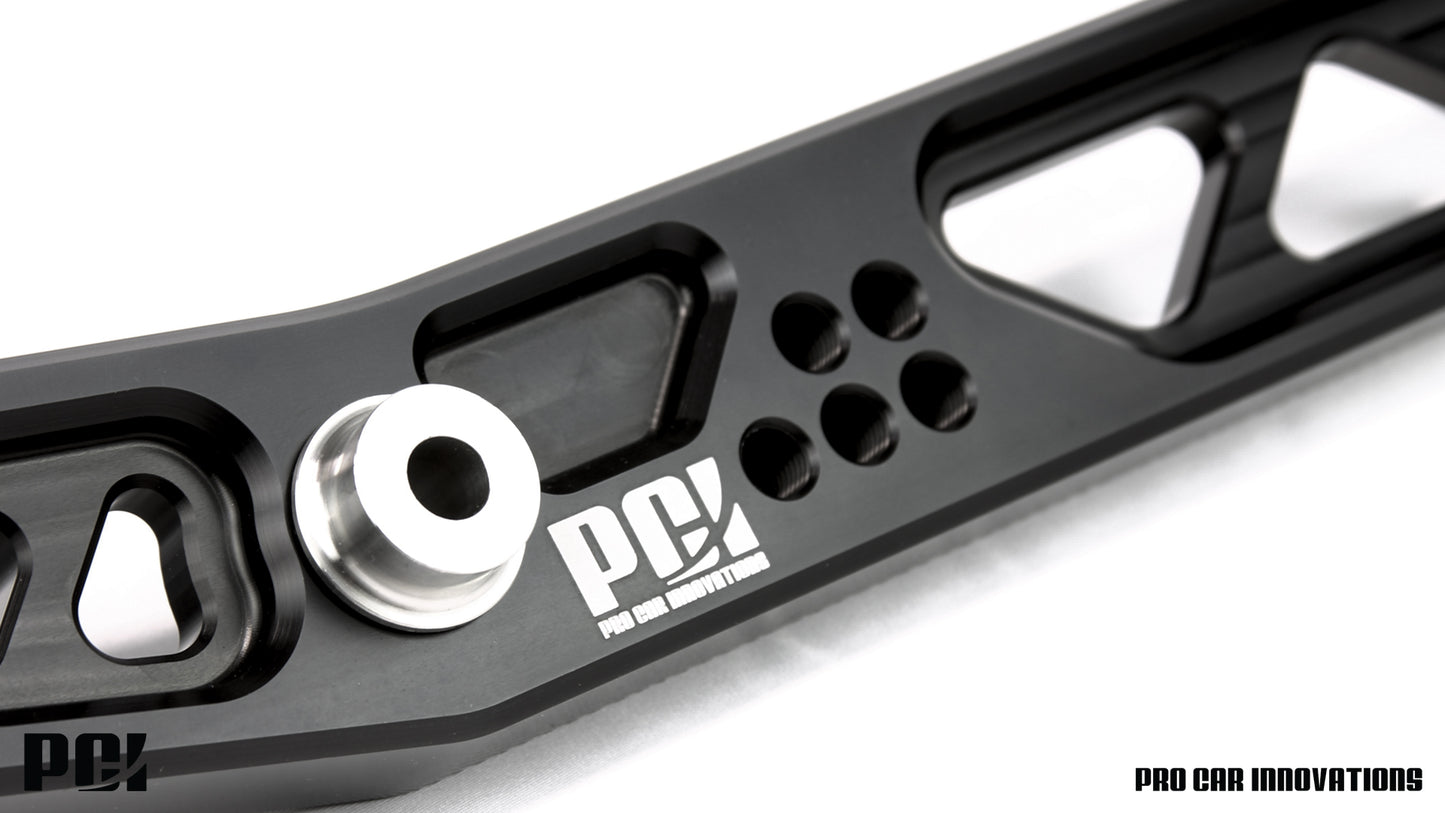

PCI RACING – SPHERICAL BEARING REAR LOWER CONTROL ARM EK/CRX/DC2

PCI RACING – SPHERICAL BEARING REAR LOWER CONTROL ARM

Replacing the factory rubber bushing rear lower control arm with the Pro Car Innovations Spherical bearing rear lower control arm effectively helps eliminate issues like sloppy inconsistent handling, alignment changes, rear drift under braking. One of the main features of our arm and most important fix or upgrade to any track car is our shock mounting location design that uses a bronze plain bearing which 100% eliminates all rotational deflection caused from heavier after market sway bars. With our design the rear sway bar will load up instantly with any body roll making the sway bar far more effective.

APPLICATION

89-01 Acura Integra, 88-91 Honda CRX, 88-95 Honda Civic

BENEFITS:

Bronze bearing shock mount will eliminate 100% of rotational deflection from heavy sway bars
Allows for more precise suspension adjustments
Helps eliminate wheel alignment changes
Helps eliminate suspension deflection seen with rubber or urethane bushings
Long lasting maintenance free 4130 steel spherical bearings
Extremely resistant to all harsh weather, street and racing conditions
Low cost Fully re-buildable M10X1.25 TAPPED SWAY BAR HOLES

SPECS:

- 6061 T6 ALUMINUM ARM
- 304 STAINLESS STEEL SPACERS
- 5/8″ 4130 OUTER RACE SPHERICAL BEARINGS

Colours:

BLACK ANODIZED
RAW MACHINE FINISH
